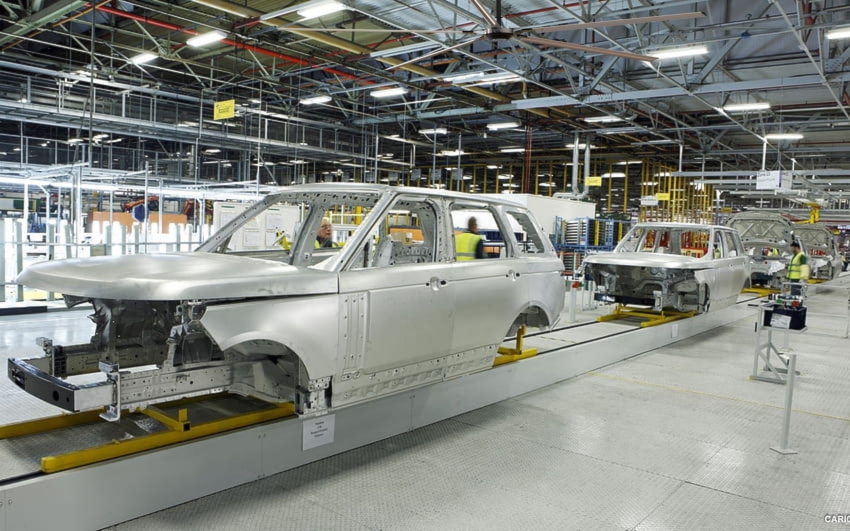

Factories
Eliminate Heat Buildup & Hot Zones With Powerful, Energy-Efficient HVLS Fans Designed For Large Factory Spaces.
Learn More
HVLS Fans -

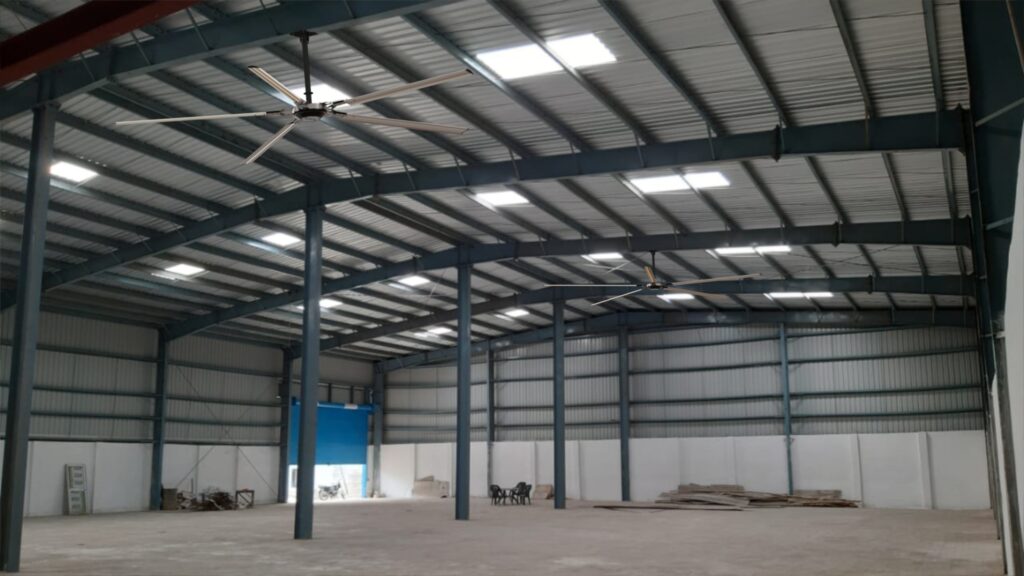

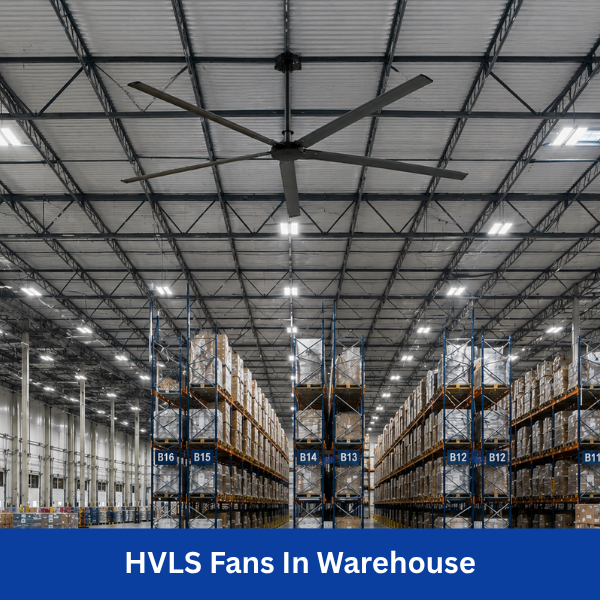

Warehouses
Combat Heat Buildup, Stagnant Zones & Uneven Temperatures With Powerful HVLS Airflow Engineered For Large Warehouses.
Learn More

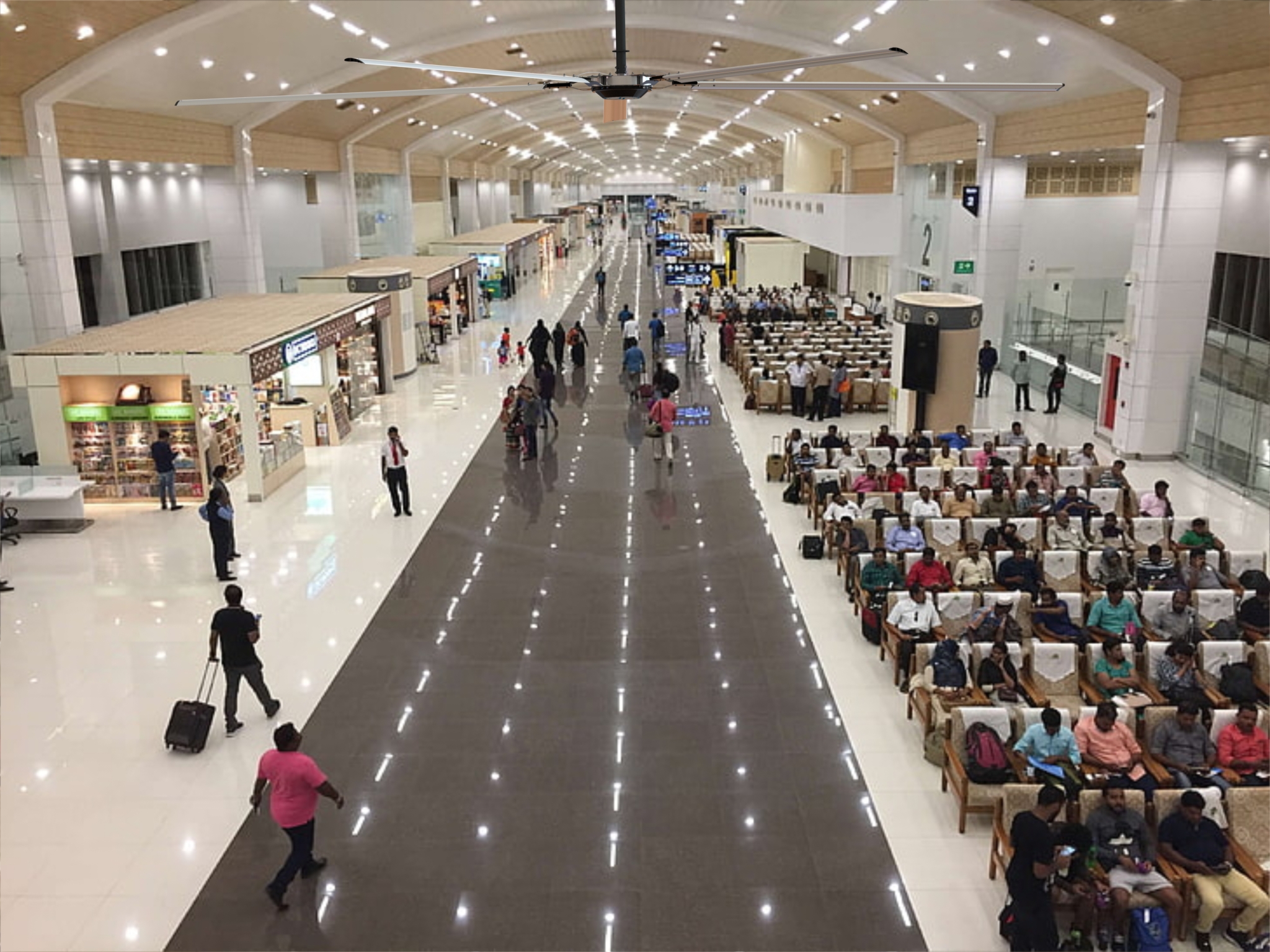

HVLS Fans -

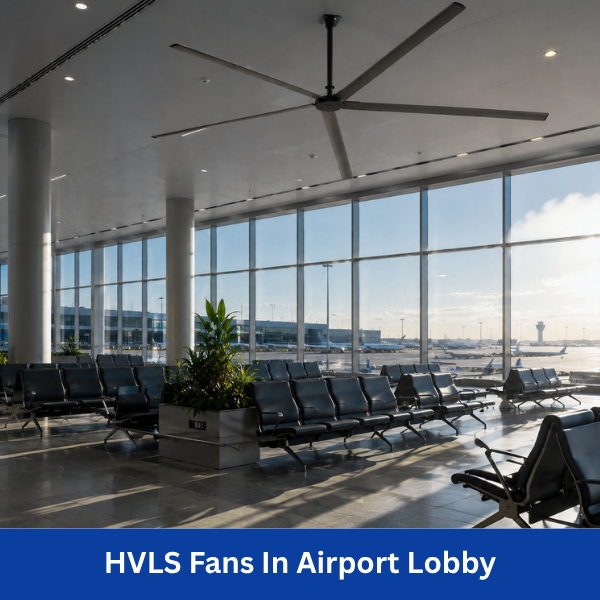

Airports
Keep Large Airport Spaces Fresh, Comfortable & Well-Circulated With Powerful HVLS Fans Built For High-Ceiling, High-Traffic Environments.
Learn More
HVLS Fans -

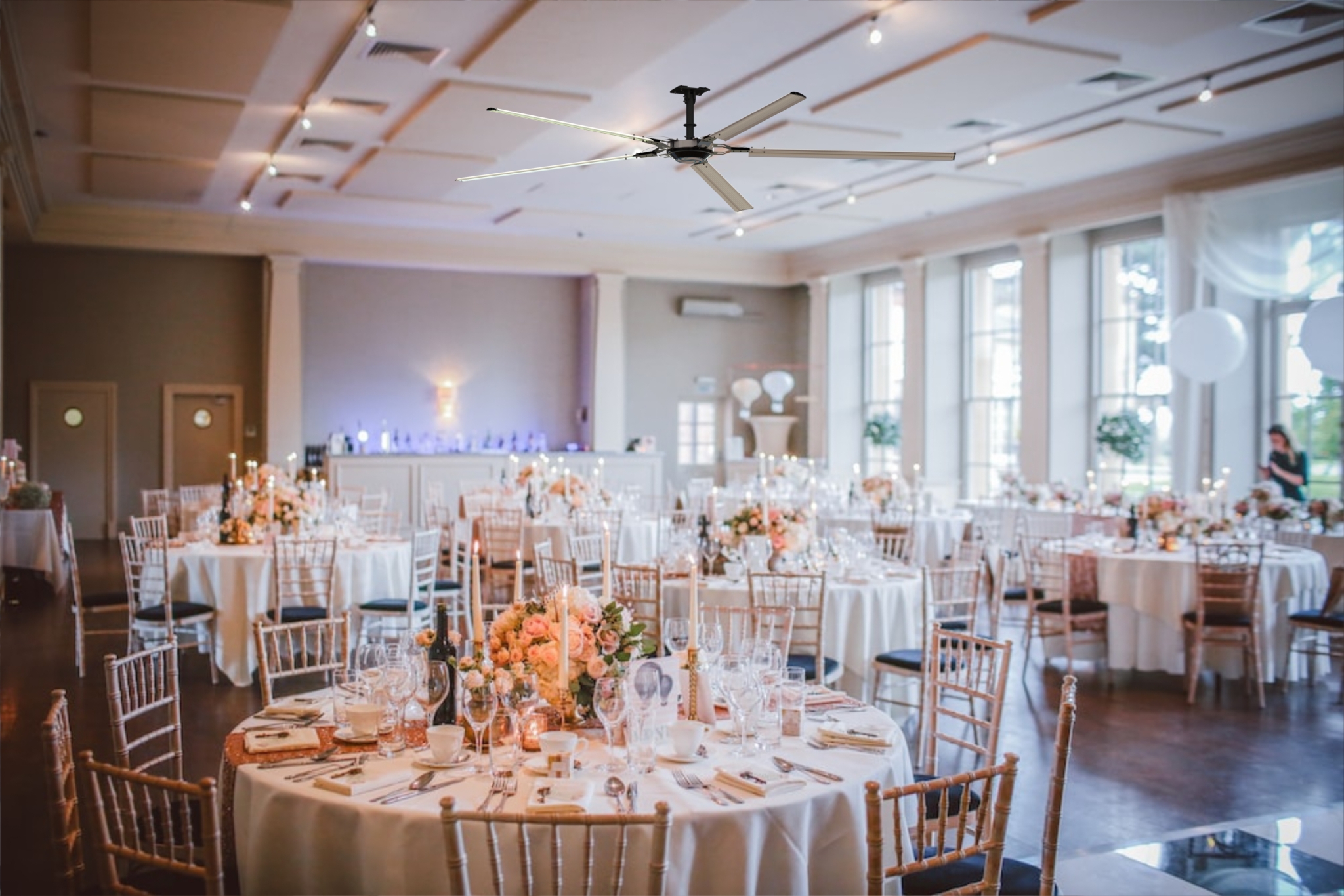

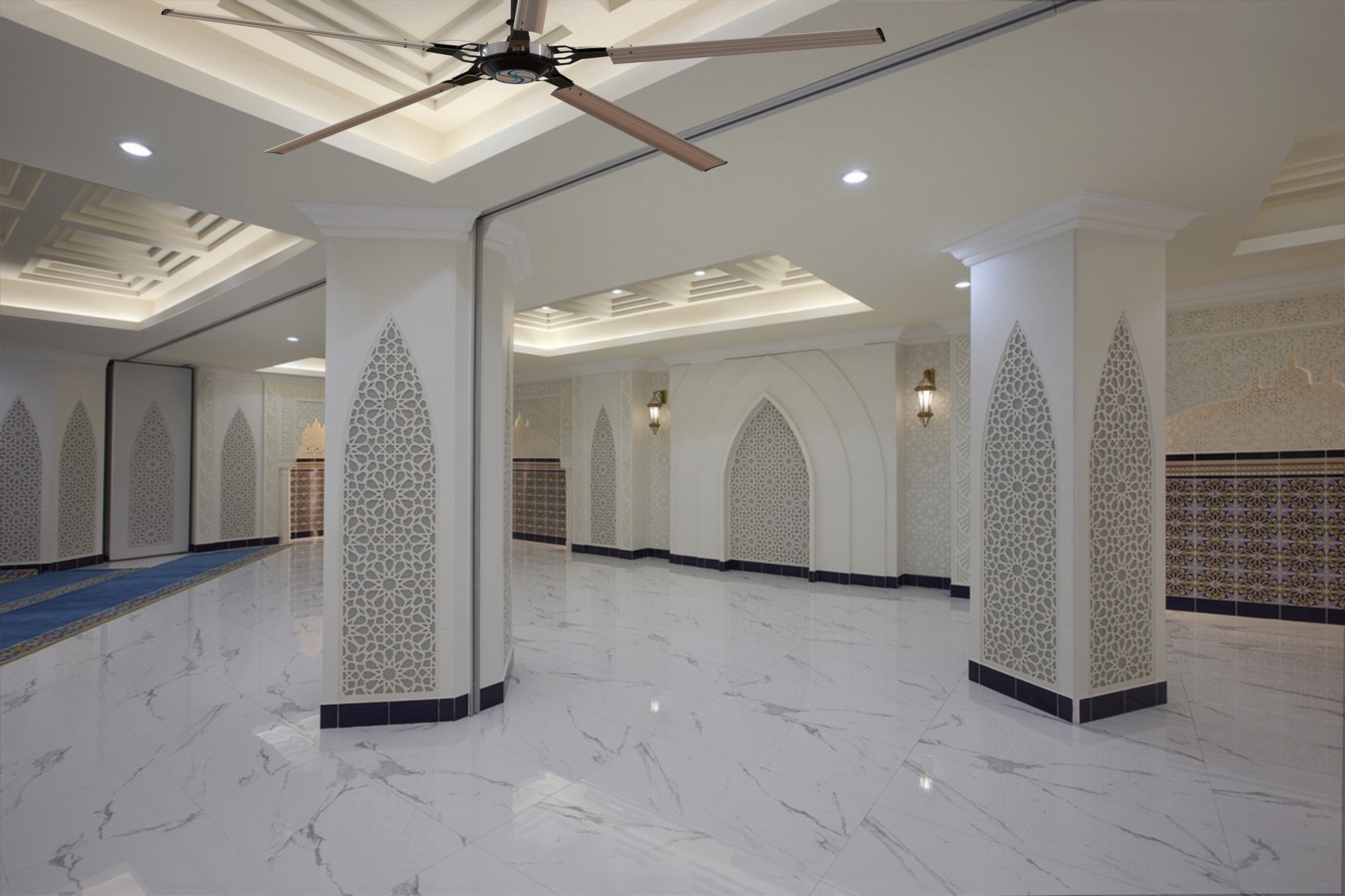

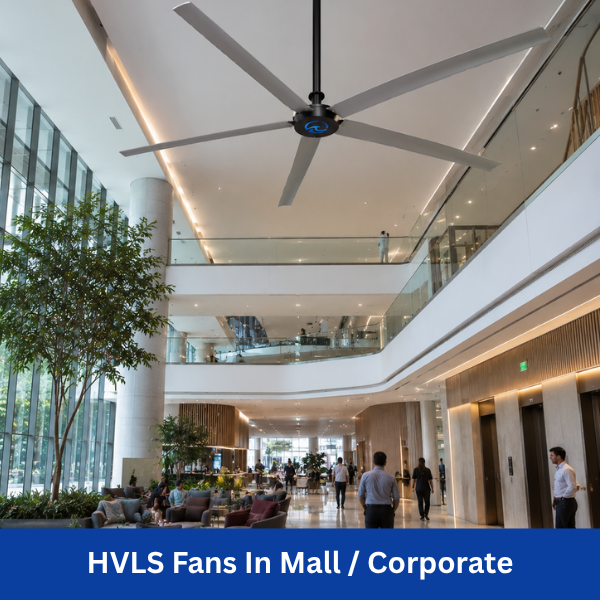

Other Applications
Reduce Heat Buildup, Improve Air Circulation & Create A More Comfortable Work Environment With High-Performance HVLS Fans.
Learn MoreHVLS Fans For Large Industrial Spaces
Softwave HVLS Fans™ are engineered to deliver high-volume, low-speed airflow across large spaces—helping reduce heat buildup, eliminate stagnant zones, and create a more comfortable environment with energy-efficient performance.
High-Volume Low-Speed (HVLS) Fans Manufacturer in India

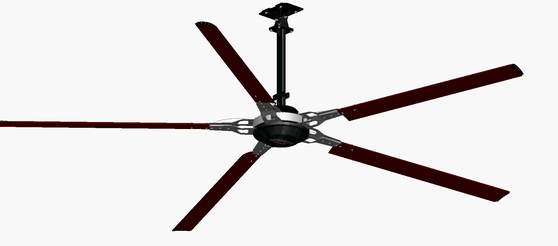

World's First Direct-Drive PMSM HVLS Fan
Gearless, brushless Zero Gravity PMSM™ motor technology — no gearbox, no gear noise, no compromise.
India's Biggest HVLS Fans
Sizes up to 30 ft, moving up to 600,000 CFM — engineered for the largest industrial spaces.
Whisper-Quiet, Ultra-Efficient
Sound signature under 35 dB with standby power of just 7W across all models.
Softwave™ HVLS fans represent a true technological breakthrough in the industry.
Engineered for silent and ultra-efficient performance, these fans operate with virtually zero maintenance for years. Consuming up to 40% less energy than the best HVLS fans on the market, they deliver exceptional efficiency with a sound signature of under 35 dB. With motor and inverter efficiencies nearing 95%, Softwave fans pack a lightweight yet powerful system capable of moving massive volumes of air at remarkably low energy costs.
Softwave HVLS technology delivers the industry’s lowest operating cost, lowest weight, near-silent operation, zero maintenance, smallest carbon footprint, and the longest lifespan—while providing an impressive, high-volume airflow unmatched by conventional HVLS fans.
SF PMSM 24 FT Fan
Model No: SF30-24F5B
Size: 24 Ft in Diameter
No of Blades: 05
Motor: PMSM – 1.5 KW/2 HP,
Max Speed: 55 rpm
Air Volume: 5,50,000 cfm
Weight: 100 Kg
SF PMSM 20 FT Fan
Model No: SF30-20F5B
Size: 20 Ft in Diameter
No of Blades: 05
Motor: PMSM – 1.1 KW/1.5 HP,
Max Speed: 60 rpm
Air Volume: 4,50,000 cfm
Weight: 85 Kg
SF PMSM 18 FT Fan
Model No: SF30-18F5B
Size: 18 Ft in Diameter
No of Blades: 05
Motor: PMSM – 1.1 KW/1.5 HP,
Max Speed: 70 rpm
Air Volume: 4,50,000 cfm
Weight: 82 Kg
SF PMSM 16 FT Fan
Model No: SF30-16F5B
Size: 16 Ft in Diameter
No of Blades: 05
Motor: PMSM – 0.75 KW/1 HP,
Max Speed: 85 rpm
Air Volume: 3,50,000 cfm
Weight: 78 Kg
SF PMSM 14 FT Fan
Model No: SF30-14F5B
Size: 14 Ft in Diameter
No of Blades: 05
Motor: PMSM – 0.75 KW/1 HP,
Max Speed: 90 rpm
Air Volume: 2,50,000 cfm
Weight: 72 Kg
SF PMSM 12 FT Fan
Model No: SF30-12F5B
Size: 12 Ft in Diameter
No of Blades: 05
Motor: PMSM – 0.75 KW/1 HP,
Max Speed: 105 rpm
Air Volume: 2,50,000 cfm
Weight: 68 Kg
Trusted by India's most demanding facilities
Read what our clients have to say. Thank you for your trust and support!
Indian Railways
Manager
transformed ventilation
Tata Steel
Purchase Manager
upgraded thermal comfort
Symbiosis
Management
Effortlessly cool and quiet
Gera
Manager
Sleek design, noiseless performance
Find frequently asked questions and
important information about us

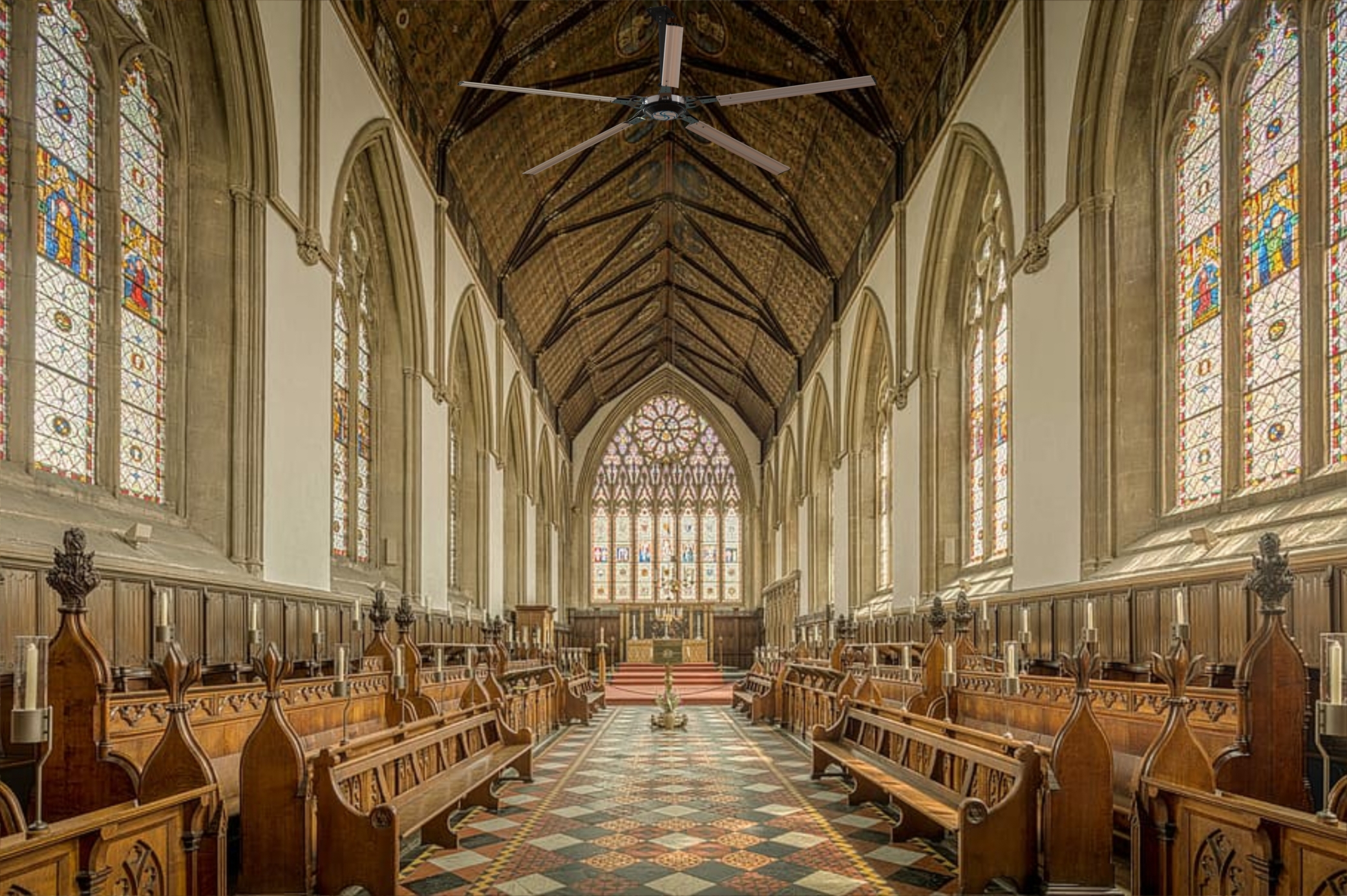

1. How do HVLS fans improve comfort and air quality in large open spaces like warehouses, churches, and airport terminals?

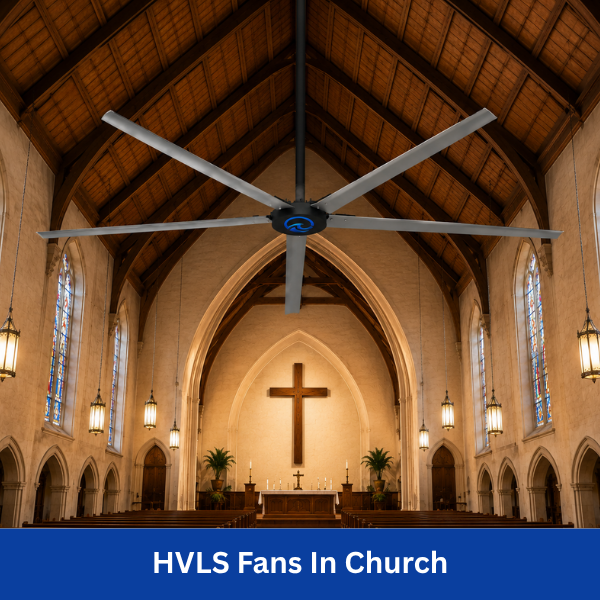

HVLS (High-Volume, Low-Speed) fans move massive volumes of air at low rotational speeds, creating a gentle, continuous breeze that lowers the effective temperature by 3°C to 5°C. In high-ceiling spaces—whether a bustling warehouse, a quiet church nave, or a high-footfall airport terminal—they break up stagnant air pockets, balance temperatures from floor to ceiling, and maintain consistent airflow without noisy turbulence.
2. Can HVLS fans be integrated into spaces with existing HVAC, exhaust, or sound-sensitive systems?
Yes. In air-conditioned facilities like airport concourses or modern warehouses, HVLS fans distribute conditioned air evenly, allowing thermostat setpoints to be adjusted to save up to 30% on energy costs. In noise-sensitive venues like churches or quiet waiting lounges, modern gearless PMSM motor technology ensures completely whisper-quiet operation while supplementing existing ventilation or exhaust systems.
3. How do I determine the right number and size of HVLS fans for my facility?
Fan layout depends on total floor area, ceiling height, obstruction levels, and spatial layouts (e.g., open seating in a church vs. high-density racking aisles in a warehouse). As a general rule, a single large 24-ft fan can cover tens of thousands of square feet of open area. A customized site survey ensures precise fan placement to eliminate dead zones and maximize airflow coverage.
4. How do HVLS fans help manage seasonal moisture, dampness, and floor sweating?
During high-humidity or monsoon seasons, still air causes condensation to settle on concrete floors, seating, and inventory. By keeping air in constant, uniform motion, HVLS fans increase surface evaporation rates, preventing “sweating floor syndrome” in commercial warehouses and maintaining a dry, comfortable atmosphere in public venues like churches and transit hubs.
